Infrared face recognition dome camera IPC-HRX5238IR
1. Features
(1).2 million 1/2.8 "CMOS sensor(1920*1080 Sony IMX327 sensor);
(2).Face snapshot comparison, at the same time, 16 faces real-time display
and face frames tracking, 40000 face feature values with the maximum
storage, single face photo minimum 128*128 pixels, maximum no more than 1M,
JPG image format;
(3).Human characteristic values can be analysed: sex and age (depending
on the environment);
(4).Support WDR;
(5).Snapshot alarm time can be set according to customer requirements;
(6).Support black and white list comparison, non-face database staff
recognition, complete alarm output
(7).Day and Night,day: 0.05Lux @ (F1.6, AGC ON); 0.01Lux @(F1.6, AGC ON),
with white light compensation interface，with IR-CUT interface;
(8).Cooperate with back-end business intelligent products to realize more
business applications, control the number of department staff, and
trigger alarm control;
(9). The detection distance can be determined by the lens, Supports prime lens and manual focus lens;
(10).H.264 standard video compression, Hi3516CV500 processor 1.0Tops;
(11).Support RTSP, RTP, TCP, UDP, DHCP, ONVIF, MQTT, HTTP protocol, etc;
(12).Support maximum standard Micro SD(TF card)/ Micro SDHC/ Micro
SDXC(128G);
(13).Communication interface: 1 10M / 100M adaptive Ethernet port;
(14).Alarm interface: Support 1 set of alarm output, output interface (AC/DC 24V 1A Max);
(15).Operating temperature and humidity :-10℃~65℃, humidity 10%-90%(no condensation);
(16).Power supply :DC: 12V±25%;
2. Technical parameters
Note: Product default User name: abc, Password: abc 123;
3. Dimension
(1).2 million 1/2.8 "CMOS sensor(1920*1080 Sony IMX327 sensor);
(2).Face snapshot comparison, at the same time, 16 faces real-time display
and face frames tracking, 40000 face feature values with the maximum
storage, single face photo minimum 128*128 pixels, maximum no more than 1M,
JPG image format;
(3).Human characteristic values can be analysed: sex and age (depending
on the environment);
(4).Support WDR;
(5).Snapshot alarm time can be set according to customer requirements;
(6).Support black and white list comparison, non-face database staff
recognition, complete alarm output
(7).Day and Night,day: 0.05Lux @ (F1.6, AGC ON); 0.01Lux @(F1.6, AGC ON),
with white light compensation interface，with IR-CUT interface;
(8).Cooperate with back-end business intelligent products to realize more
business applications, control the number of department staff, and
trigger alarm control;
(9). The detection distance can be determined by the lens, Supports prime lens and manual focus lens;
(10).H.264 standard video compression, Hi3516CV500 processor 1.0Tops;
(11).Support RTSP, RTP, TCP, UDP, DHCP, ONVIF, MQTT, HTTP protocol, etc;
(12).Support maximum standard Micro SD(TF card)/ Micro SDHC/ Micro
SDXC(128G);
(13).Communication interface: 1 10M / 100M adaptive Ethernet port;
(14).Alarm interface: Support 1 set of alarm output, output interface (AC/DC 24V 1A Max);
(15).Operating temperature and humidity :-10℃~65℃, humidity 10%-90%(no condensation);
(16).Power supply :DC: 12V±25%;
2. Technical parameters
| Model | IPC-HRX5238IR | |
| Camera | ||
| Sensor | 1/2.8" Progressive Scan CMOS | |
| Master chip | Hi3516DV300 | |
| Electronic shutter | 自动 | |
| Minimum illumination | Color:0.05Lux@F1.6; Black and white :0.01Lux@F1.6; |
|
| SNR | ≥50dB(AGC OFF) | |
| Day to day mode | Photosensitive detection/ Time To Trial | |
| WDR | Yes | |
| DDR | 8Gb DDR | |
| FLASH | 256MB NAND FLASH | |
| Compression standard | ||
| Video compression standard | H.264 | |
| H.264 encoding type | Main Profile | |
| Video bitrate | 32 Kbps~16Mbps | |
| Image | ||
| Image Settings | AWB（AUTO）、AGC（AUTO）、AE（AUTO）、AIC（AUTO）;D/N control | |
| Maximum image size | 1920*1080 | |
| Video resolution | Main stream | 1080P(1920*1080) |
| Video frame rate | 25fps (1920*1080) | |
| OSD set | Yes | |
| Network function | ||
| Network protocol | IPv4,802.1x, TCP/IP, UDP, RTP, RTCP, RTSP, NTP, DHCP, DNS | |
| Access to standard | Support ONVIF /SDK | |
| Number of users supported | Up to 10 users can be logged in simultaneously | |
| Secondary interface | ||
| Network interface | 10M/100M adaptive Ethernet port | |
| Audio interface | Reserved | |
| Alarm interface | 1 way switch alarm signal output, maximum support DC24V 1A | |
| TF card interface | Support TF card photo storage (maximum 128G) | |
| Conventional parameters | ||
| Power supply | DC 12V | |
Note: Product default User name: abc, Password: abc 123;

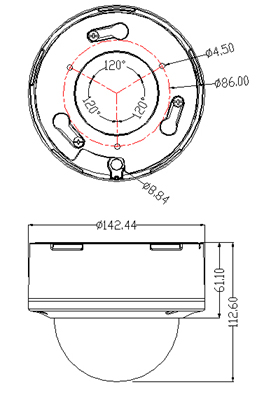

3. Dimension
